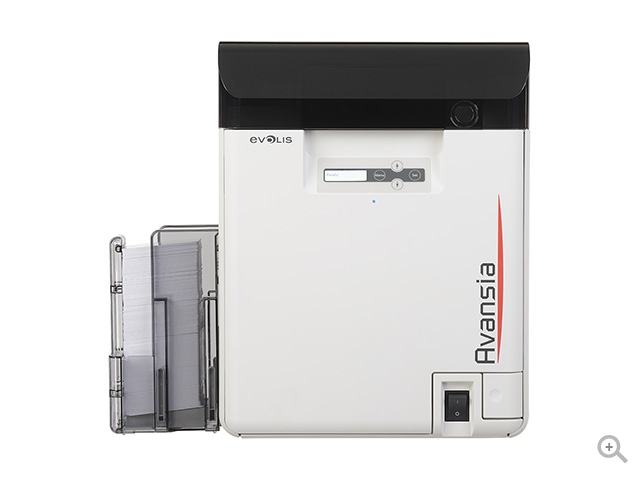

Evolis Avansia is a re transfer card printer that offers very high quality plastic card production. Designed for rigorous use, Avansia is extremely robust and provides high security card issuance. It is ideal for organizations that need to produce the highest quality personalized plastic ID cards in medium and large quantities. Avansia is ideal for creating:

• Corporate ID cards
• Secure access badges
• Student cards
• Payment cards
• Loyalty cards / gift cards
• National ID cards
• Driver’s licenses

Key features of the Evolis Avansia printer include:

• Exceptionally fast output prints up to 140 single-sided color cards per hour
• High resolution 600 dpi – double the print quality of most card printers on the market – creates crisp, high-definition images, micro text and watermarks
• Avansia produces true over-the-edge card prints, guaranteeing that your edges print perfectly since the film fully covers the card
• 3-Year standard warranty and life time warranty on the print head
• Prints on all types of cards including uneven card surfaces, such as smart contact and contactless cards – standard dye sublimation for PVC cards and re transfer for ABS, Polycarbonate (PC) and most of the PET cards
• Configure and combine all types of data encoding options: magnetic stripe, and contact & con-tactless smart cards – Please contact an ID Expert at 877-868-0012 for Smart Card encoding options
• High capacity card hoppers (250 cards), print ribbons and transfer film produce cards with no interruption, even in critical environments (dust, heat…)
• High capacity printer ribbons and transfer films
• Secure print environment with an easy-to-use RFID electronic key that prevents any attempt to use the printer.
• Standard built-in card flattener delivers perfect results.
• • Dual-sided printing (standard)
  • Over the edge printing
  • 600 dpi print head (23.6 dots/mm)
  • Bitmap: 24 bits, 16 million colors
  • Printout: Y/M/C 256 level

  Printing performances

  • Full card: Single side (YMCK): 25 s/card – 144 cards/hour; Dual side (YMCKK): 37.5 s/card – 96 cards/hour
  • Interfaces: USB (1.0, 1.1, 2.0, 3.0), cable supplied, Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

  Card management and specifications

  • Card feeder: 250 cards (0.76 mm – 30 mil)
  • Card output hopper: 250 cards (0.76 mm – 30 mil)
  • Reject tray capacity: 30 cards (0.76 mm – 30 mil)3
  • Card thickness: 0.76 mm (30 mil), manual adjustment
  • Card types: PVC cards, Composite PVC cards, PET-F cards, PET-G cards, Polycarbonate cards (PC), ABS cards
  • Card format: ISO CR80 – ISO 7810 (53.98 x 85.60 mm –  3.370” x 2.125”)

  Display

  • Two-line LCD display and LED status indicator
  • Printer graphical notifications: empty input hopper, empty/low level ribbon alert…

  Dimensions (H x W x D): 17.16” x 13.38” x 11.69”

  Weight: 20 kg

Read more about Evolis Card Printers.
