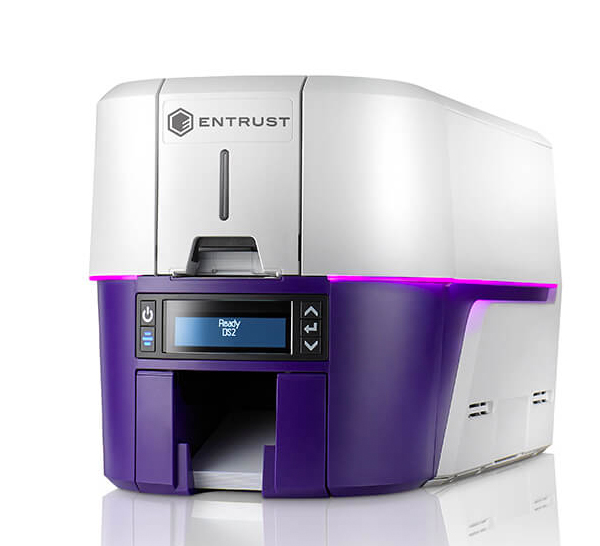

Datacard DS2 Entrust Sigma Duplex ID Card Printer

Datacard DS2 Entrust Sigma Duplex ID Card Printer

• Through a Printer Dashboard in your mobile phone, you can be able to check the status of your Entrust Sigma DS2, order supplies, check cleaning status, update firmware, or contact help.
• Flexibility to issue IDs with software in the cloud or on-premise has made printing cards  much more easier.
• TPM Module and Secure Boot encryption technologies ensures your data is always safe from malicious attacks.
• Entrust Datacard Sigma DS2 has the capability to issue both physical (card) and a digital (mobile flashpass)  IDs at the same time. Read more about Entrust Sigma Printers.

  Standard Features and Supplies



  Print Technology

  • Dye-sublimation / resin thermal transfer

  Print Capabilities

  • Single or dual-sided

  Print Resolution

  • 300 dots per inch (dpi) (300 X 600, 300 X 1200)

  Monochrome printing

  • Up to 880 single-sided cards per hour

  Print Speed

  • Single-sided color ribbon – up to 225 cards per hour (cph)
  • Double-sided color ribbon – up to 140 cards per hour (cph)

  Card Capacity

  • Input hopper – up to 125 cards
  • Output hopper – up to 25 cards (up to 100 optional)
  • Reject hopper – up to 10 cards

  Card Sizes

  • Card input size:
    • Thickness – 0.010 inches to 0.040 inches
      • (0.25mm – 1.016mm)
    • Dimension – ID-1, CR-79, CR-80

  Operating Environment

  • Temperature: 60°F to 95°F (15°C to 35°C)
  • Humidity: 20-80 % RH – non condensing

  Physical Dimensions

  • L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

  Weight

  • 12.1 lbs (5.49 kg); with options will vary

  Connectivity

  • USB & Ethernet

  Warranties

  • 36 Months

  Web browser support for Instant ID as a Service

  • Chrome – Preferred
  • Edge/Internet Explorer
  • Safari

  Operating system support for printer driver

  • Windows 10 versions, 32- and 64-bit
  • Windows 8.1, 32- or 64-bit
  • Windows Server 2019
  • Windows Server 2016
  • Windows Server 2012, R2, 64-bit
