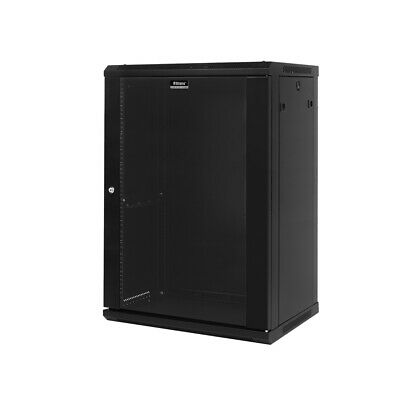

15U 450 by 600 Network Cabinet

 solid welded frame,maximum load capacity 60kg

2.      The turning angle of front door is above 180 degree;

3.      Degree of protection: IP20

4.      top fan and air intake around cabinet help exhaust hot-air

5.      quick released side panel with lock

6.      cable entry in top and bottom

7.      Surface finish: The degreasing, pickling, phosphoric, powder coated;

8.      Material: SPCC cold rolling steel plate, mounting angle: 2.0mm, others is 1.2mm

9.      Color: black or other colors available

Technique Parameter:

1. aluminum alloy material;
2. thickness is 1.2-2.0mm,
3. the top of the cabinet can add the fan;
4. front door, back door, side door can be disassembly;
5. front door is the glasses door or the mesh door;
6. the cabinet can stand on floor and also can be fixed on the wall,
7. there is hole for cable in the top and down of the cabinet, convenient for the cable enter.

Compliance:

ANSI/EIA; RS-310-D; IEC297-2; DIN41491:PART1; DIN41494:PART7; GB/T3047.2-92 standard
