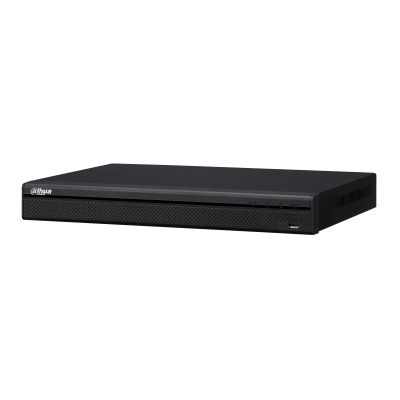

Dahua Dhi-nvr4232-16P 32 Channel NVR
|
Performance |
16/32 channels |
AI Search |
Search by target classification (human, vehicle) |
Video Dahua Dhi-nvr4232-16P 32 Channel NVR
|
Access Channel |
16/32 |
Network Bandwidth |
200 Mbps for access, 200 Mbps for storage and 96 Mbps for forwarding |
Resolution |
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
Decoding Capability |
8 channels@1080p (30 fps) |
Video Output |
HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720 |
Multi-screen Display |
16-channel: 1/4/8/9/16
32-channel: 1/4/8/9/16/25/36 |
Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
Compression |
Video |
Smart H.265+; Smart H.264+; H.265; H.264 |
Audio |
PCM; G.711A; G.711U; G.726 |
Network |
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P |
Mobile Phone Access |
Android; iOS |
Interoperability |
ONVIF (profile T/S/G); CGI; SDK |
Browser |
Chrome; IE9 or later; Firefox |
Record Playback |
Multi-channel Playback |
1/4/9/16 |
Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
Storage Method |
Local HDD and network |
Backup |
USB device |
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off |
Storage |
Disk Group |
Yes |
Alarm |
General Alarm |
Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
Anomaly Alarm |
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
Intelligent Alarm |
Perimeter protection; SMD; people counting; heat map |
Alarm Linkage |
Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
External Port |
Audio Input |
1 channel, RCA connector |
Audio Output |
1 channel, RCA connector, which support voice intercom output |
HDD |
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
Alarm Input |
4 channels |
Alarm Output |
2 channels |
USB |
1 front USB 2.0 port, 1 rear USB 3.0 port |
HDMI |
1 |
VGA |
1 |
Network |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
PoE |
16 ports (IEEE802.3at/af) |
